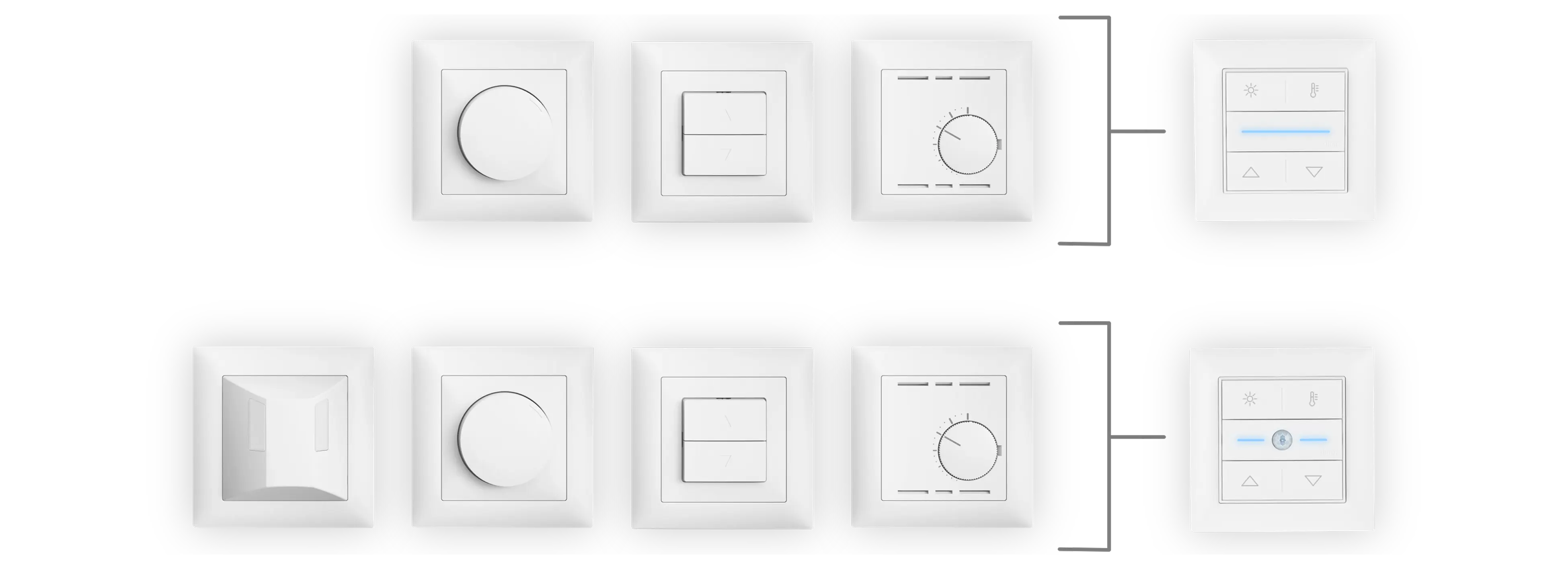

Two rows of different white wall switches and controls on a black background: the top row has a rotary dial, a two-button switch, a dial with markings, and a lighted control panel with icons for light, temperature, and arrows; the bottom row has a motion sensor, rotary dial, two-button switch, dial with markings, and a lighted control panel with similar icons and a central sensor.
ELECTRICAL INSTALLATION. RETHOUGHT.

Compact smart switches. Powerful possibilities.

dingz works with standard wiring in both new construction and renovations. It fits standard Swiss flush-mounted and surface-mounted boxes, coordinates with Feller switch ranges, and connects via Wi-Fi for smart functionality. Switches communicate directly—no bus system or central controller required.

Installation stays straightforward: existing switches can be replaced without changing the fundamental wiring logic. Wi-Fi eliminates conventional multiway and impulse-switch wiring in many applications, while traditional switching logic can still be wired conventionally when required.

Whether as a compact switch or a flexible smart-home solution—dingz is always the right fit. Conventionally wired or intelligently connected via Wi-Fi. Lighting, blinds, heating, and more can be set up with minimal effort—clean, intuitive, and quick to install.

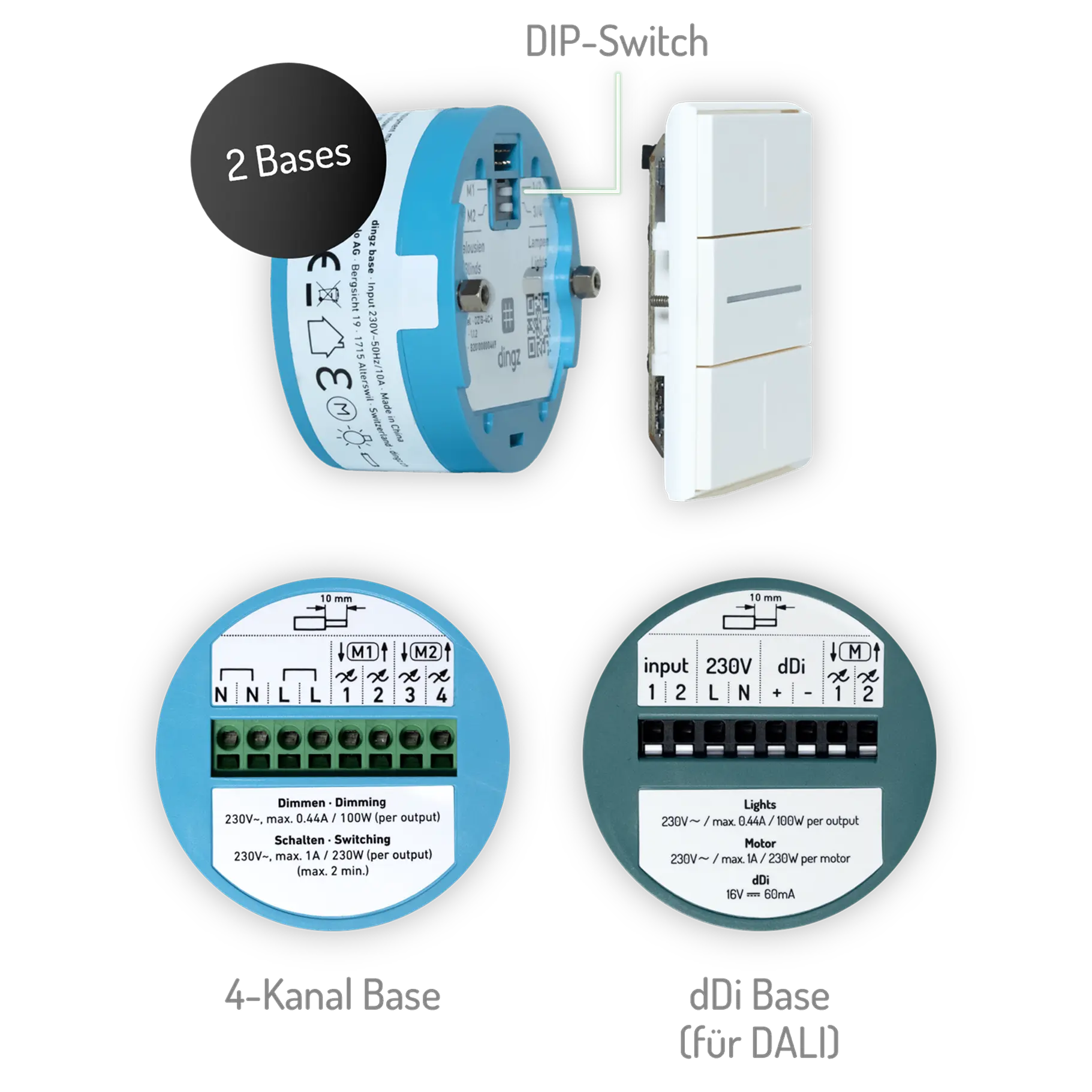

Two circular electronic base units with terminal connections labeled for dimming, switching, lights, and motor functions; one also shows a DIP switch and a white wall control switch with three horizontal buttons labeled 2 Bases, 4-Kanal Base, and dDi Base (für DALI).

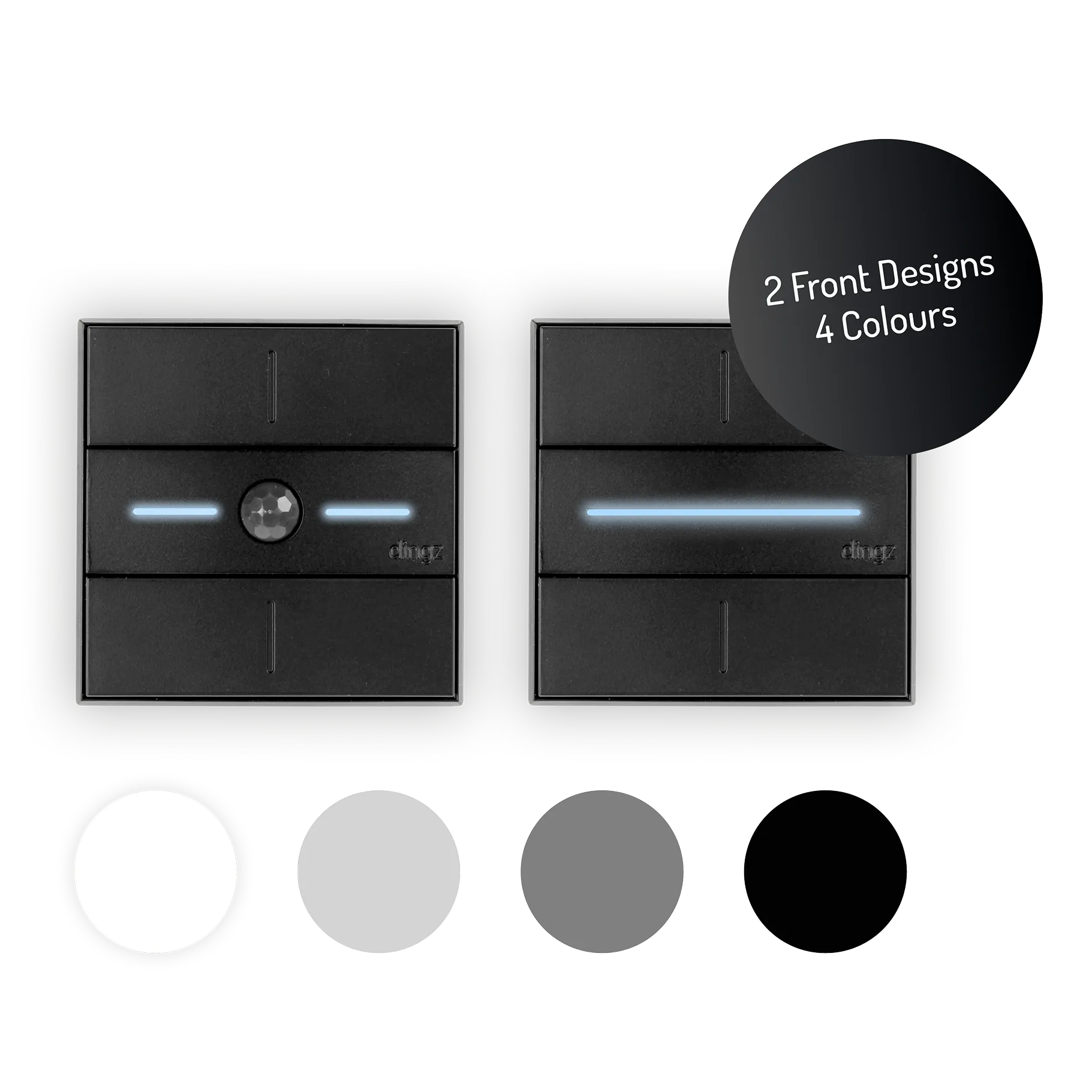

Two black square smart switches with glowing blue indicators; left switch has two horizontal lights and a sensor in the center, right switch has a single horizontal light. A black circle with white text reads '2 Front Designs 4 Colours.' Below are four color circles: white, light gray, dark gray, and black.

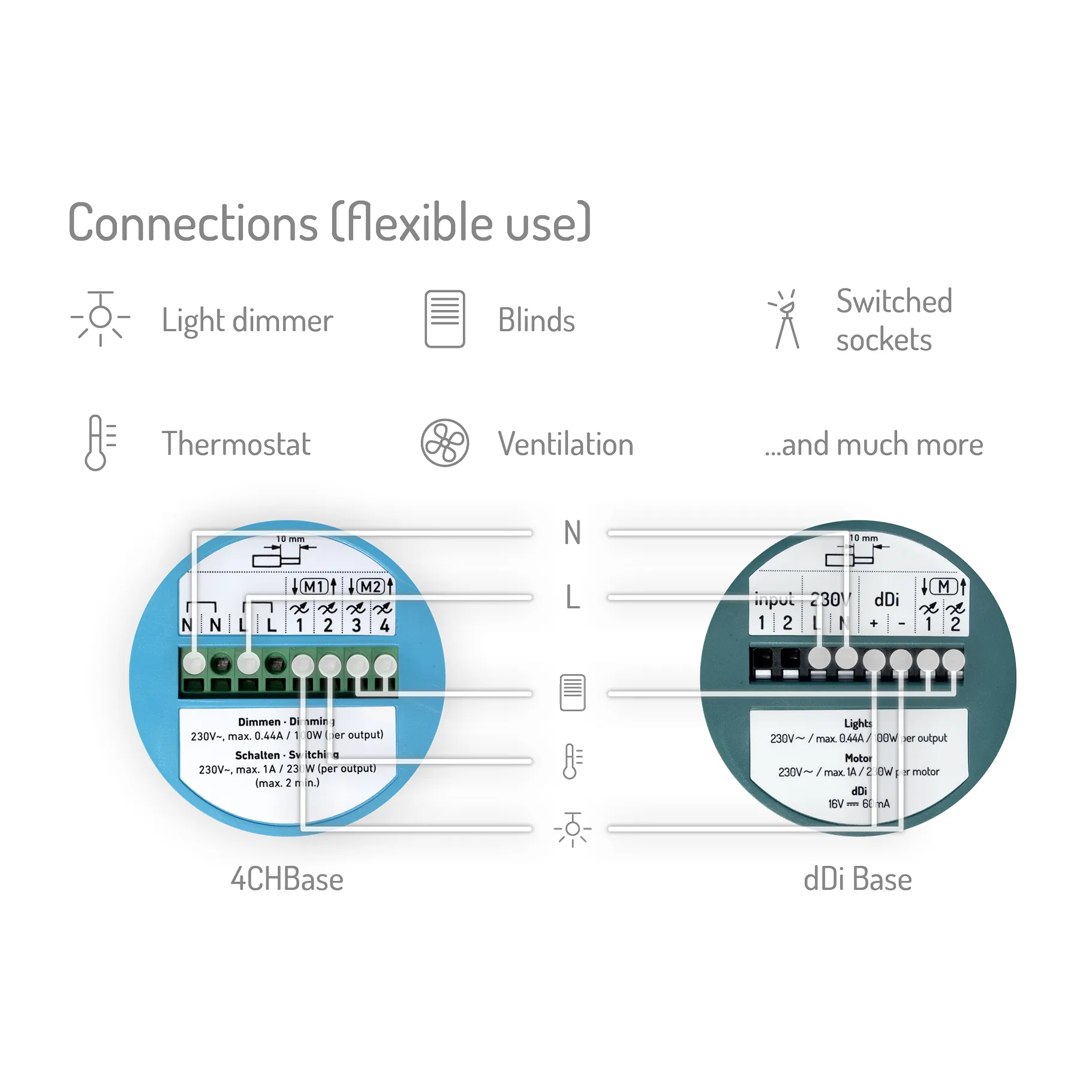

Diagram showing flexible connections for devices including light dimmer, blinds, switched sockets, thermostat, ventilation, and more. It features two circular diagrams labeled 4CHBase and dDi Base with terminals marked N, L, and numbered connection points for wiring.
ONE SWITCH. MORE POSSIBILITIES.

Deliver more with every installation

4 trailing-edge dimming outputs
4 addressable DALI groups
Flexible inputs and outputs for blinds, awnings, lighting, heating, and more
Einfache Planung mit dem dingz DESIGNER
TECHNICAL DETAILS

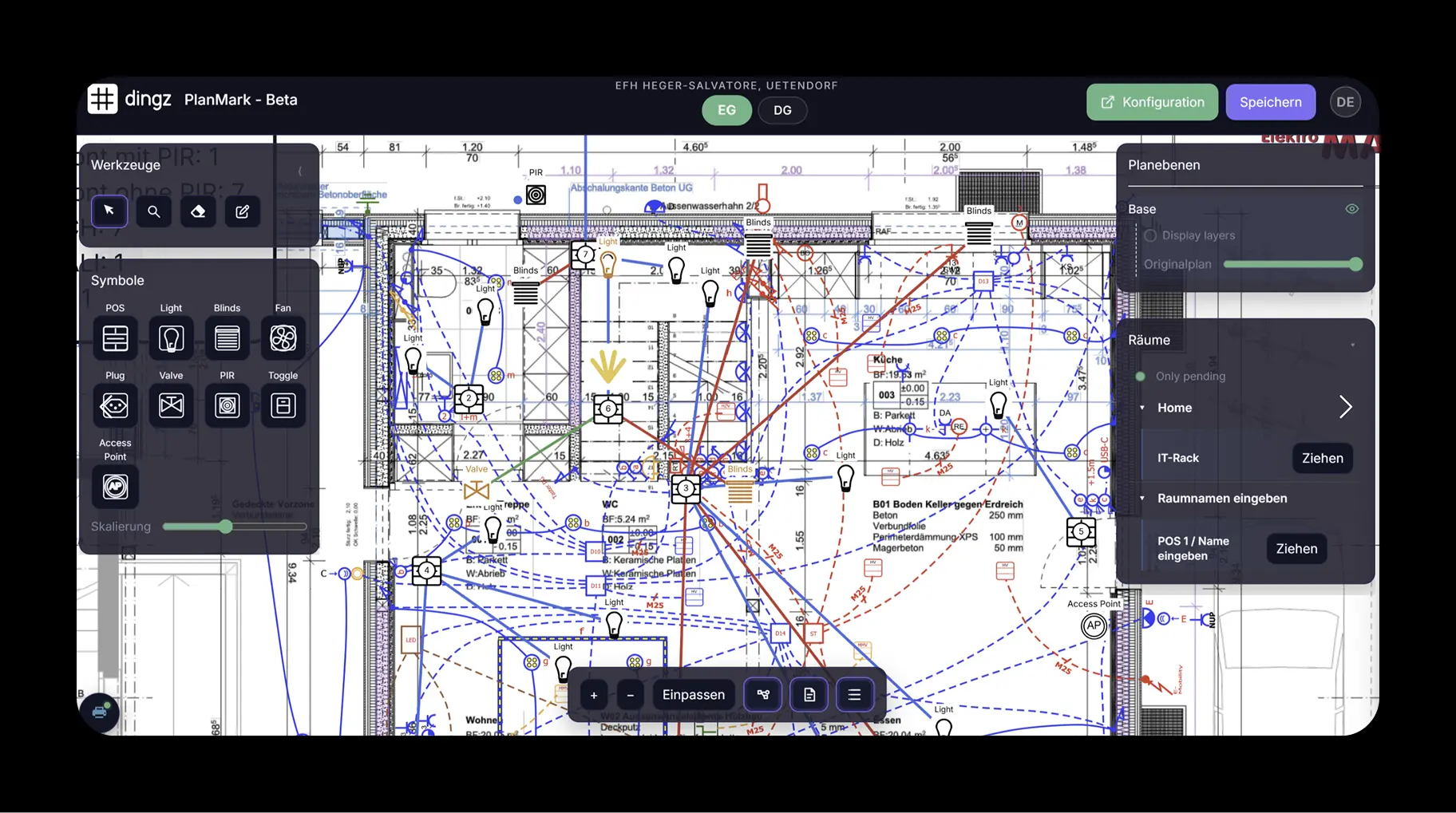

User interface of dingz PlanMark Beta software showing a detailed building floor plan with symbols for lighting, blinds, fans, plugs, valves, PIR sensors, toggles, and an access point, along with wiring connections and measurements. Left panel displays tools and symbols with a scaling slider. Right panel shows layers and room options, including Home and IT-Rack. Top right contains buttons for configuration and saving, with user initials EG and DG displayed.
PLANNING TOOL

dingz DESIGNER

Move seamlessly from planning and quotation to commissioning. dingz DESIGNER automatically generates configuration data and customer documentation as a PDF. Transfer the prepared data instead of configuring every switch individually—saving valuable time and reducing on-site effort.

OPEN DESIGNER

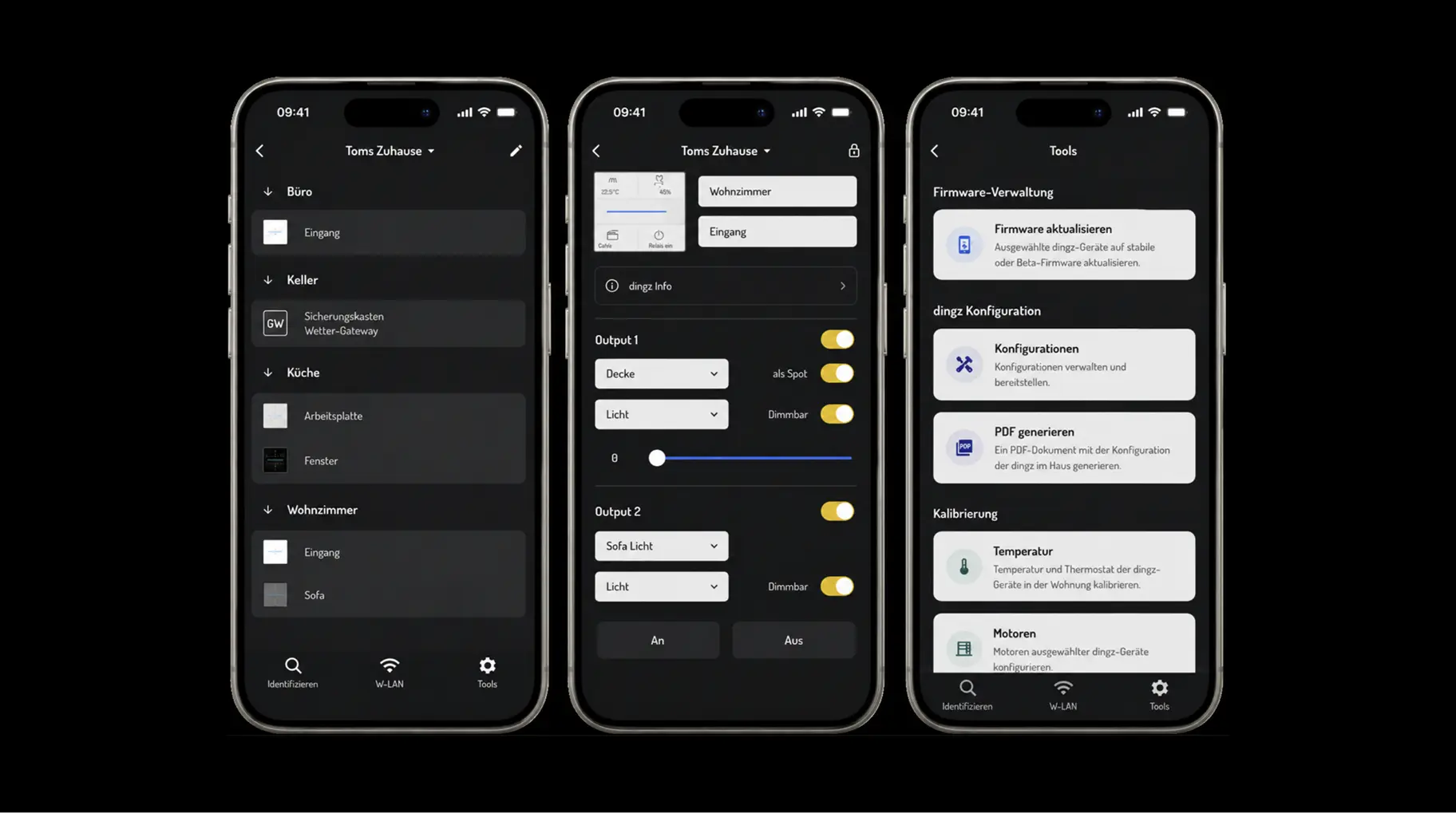

Three smartphone screens display a smart home app in dark mode with German text: The left screen shows a home overview with rooms Büro, Keller, Küche, and Wohnzimmer listing devices and zones. The middle screen displays controls for rooms Wohnzimmer and Eingang, including light settings labeled Decke and Sofa Licht with toggles for spot and dimmable functions. The right screen shows a Tools menu with options for firmware update, configuration, PDF generation, and calibration of temperature and motors.
APP FOR ELECTRICIANS

Installer App

Built for electrical professionals, the dingz Installer app transfers configuration data to dingz devices and enables manual commissioning of wired outputs on site—for a fast, efficient, and reliable setup.

OPTIONAL SIGNALBOX + LOCAL WEATHER DATA

Protect the building. Optimize performance.

Paired with the optional Elsner weather station, the dingz Signalbox processes local solar radiation, wind, and rain data in real time. Shading can respond proactively for greater comfort, improved energy efficiency, and optimized building operation.

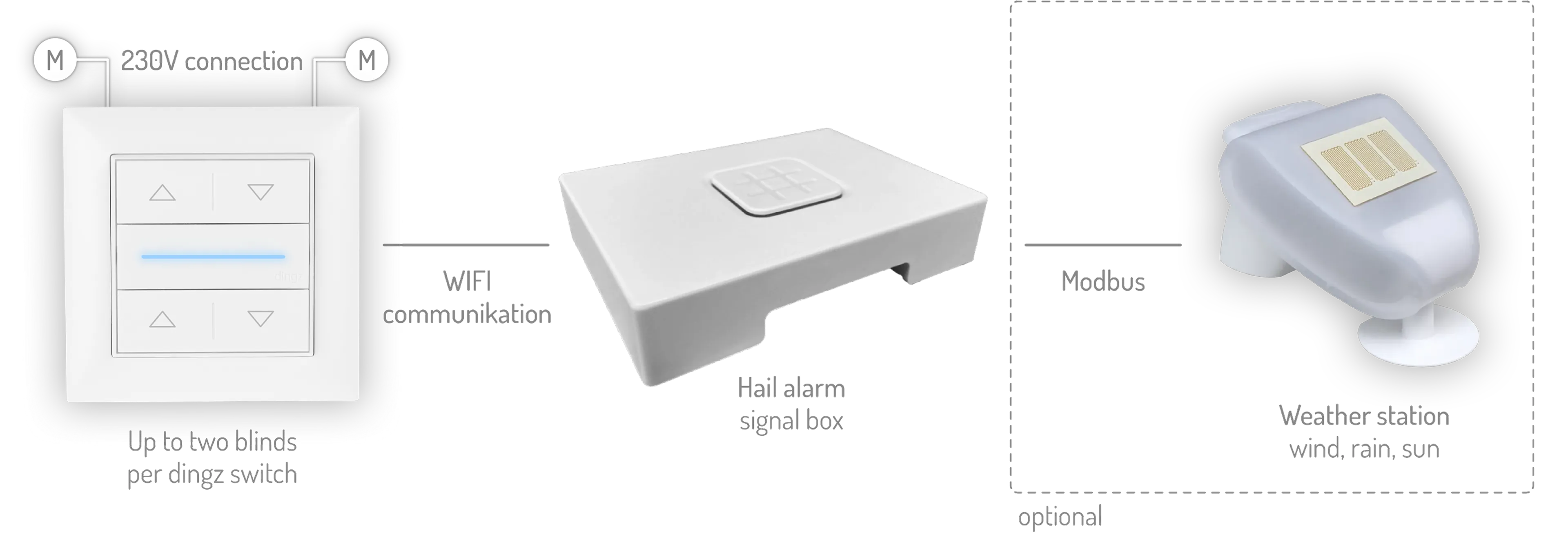

Diagram showing a hail alarm system with three components: on the left, a white 230V switch with four buttons connected by 230V lines; in the center, a hail alarm signal box connected via WiFi communication to the switch; on the right, an optional weather station device with sensors for wind, rain, and sun connected to the signal box via Modbus.
Diagram of a two-story building with a basement, showing networked fire alarm system components including motion detectors, manual call points labeled M and L, bells, sounders, and smoke detectors on each floor connected to a central panel that links remotely to an RAS mobile device via a cloud service.
PROTECTION IN SEVERE WEATHER

VKF-recognized hail protection

When a hail warning is issued, the dingz Signalbox automatically moves blinds into a protected position. This VKF-recognized solution may qualify for attractive cantonal incentives and helps protect both the building and its shading systems.

DINGZ PARTNER NETWORK

Free certification training

Expand your expertise and become a certified dingz partner electrician or planner. Our hands-on training is built around the real-world needs of electrical professionals.
