Our products available online

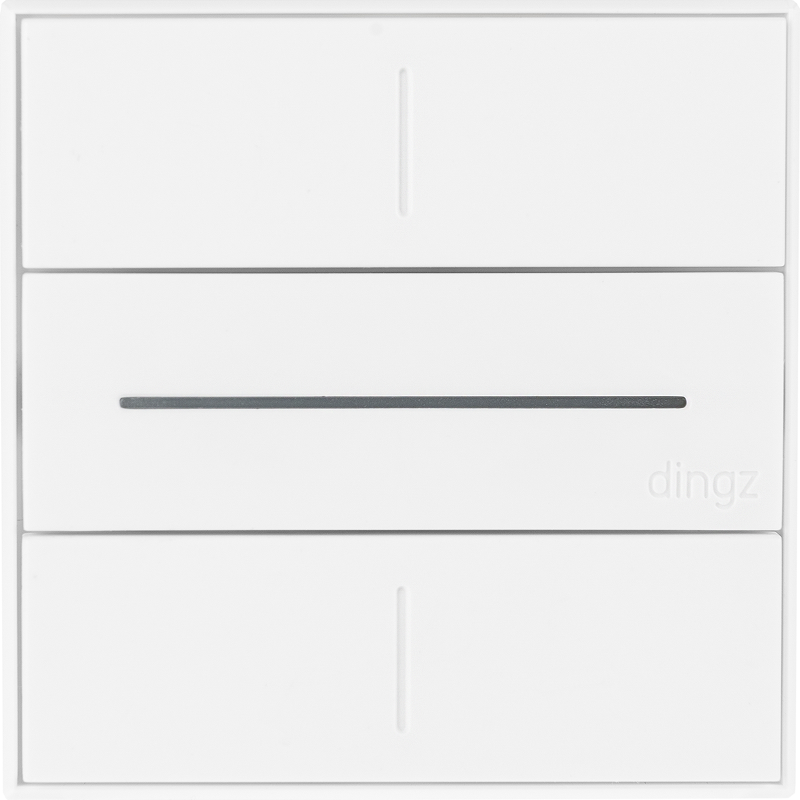

dingz Front
129.- / pce
- 4 conventional switches
- Connections for up to 4 lights (dimmable) or 2 blinds
- Thermostat function
- Night light
- Energy and power measurement
- WiFi
- Connect to Smart Home services
dingz Front plus
184.- / pce
- 4 conventional switches
- Connections for up to 4 lights (dimmable) or 2 blinds
- Motion Detector: dims lights depending on ambient brightness, touch-less switching, Home Automation, energy saving
- Thermostat function
- Night light
- Energy and power measurement
- WiFi
- Connect to Smart Home services

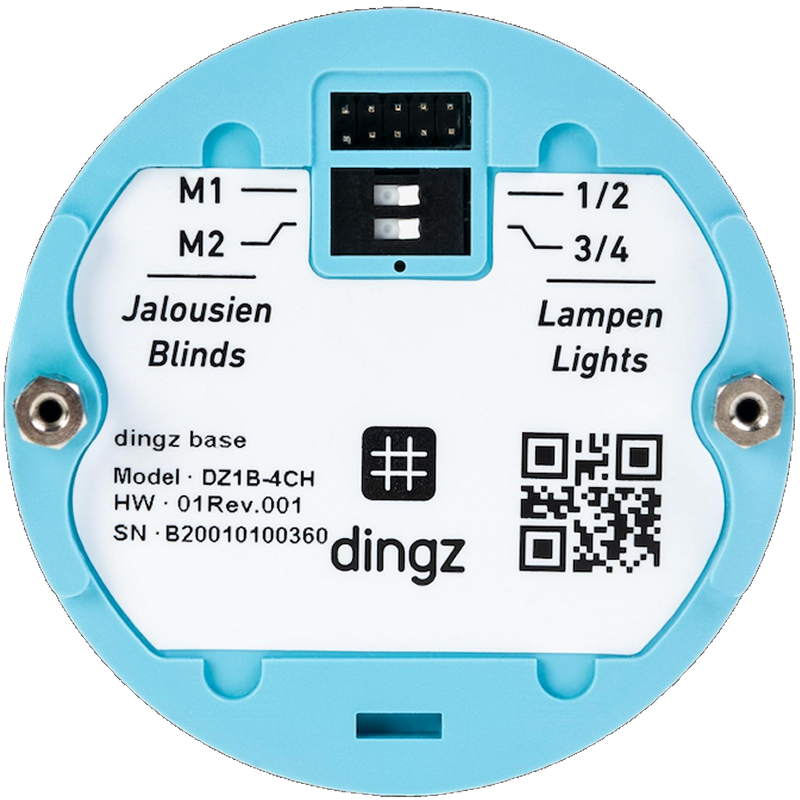

dingz Base
130.- / pce
- 4 universal outputs
- Connections for 4 lights (adjustable)
or 2 blinds maximum - Thermostat valve function
- Ventilation control
- Sockets control
- Energy and power measurement
Technical details
Supply voltage 3.8V DC 0.5A
Standby consumption 0.3 W
WiFi 2.4GHz 802.11n
Protection type IP20
Protection class III
Ambient temperature +5°C to +35°C, non-condensing
Dimensions (W x H x D) 60 x 60 x 20 mm
Power supply: 230V~ 50Hz.
Supply current 4A
Output power max. 400W / max. 100W max per output, max. 230W per output (for short periods of up to 2 minutes)
Standby consumption 0.7W
Protection type (IEC 60529) IP20, dry installation
Protection class II
Ambient temperature +5°C to +35°C, non-condensing
Operating altitude 0 to 2,000 meters above sea level
Dimensions (W x H x D) 60 x 60 x 32 mm
Package contents
WiFi unit with 4 switches, LED, temperature sensor, PIR motion detector, brightness sensor
Installation instructions
dingz base: 230V switch unit with 4 individually dimmable outputs
2x screws for installation in the mounting plate
Installation instructions
Feller EDIZIOdue cover frame
Feller EDIZIOdue mounting plate
BASIC engraved buttons
12.- / ue
- 6 replacement Buttons with engraved symbols for standard applications.
SMART engraved buttons
12.- / ue
- 6 replacement Buttons with engraved symbols for smart applications.
Pre-engraved buttons
2,65.- / pce
- 1 replacement button, model of your choice
